Project review includes
- Application and work-site assessment
- Powertrain and configuration confirmation
- Selected standard and optional equipment
- Branding, labels and documentation
Enclosed bestseller

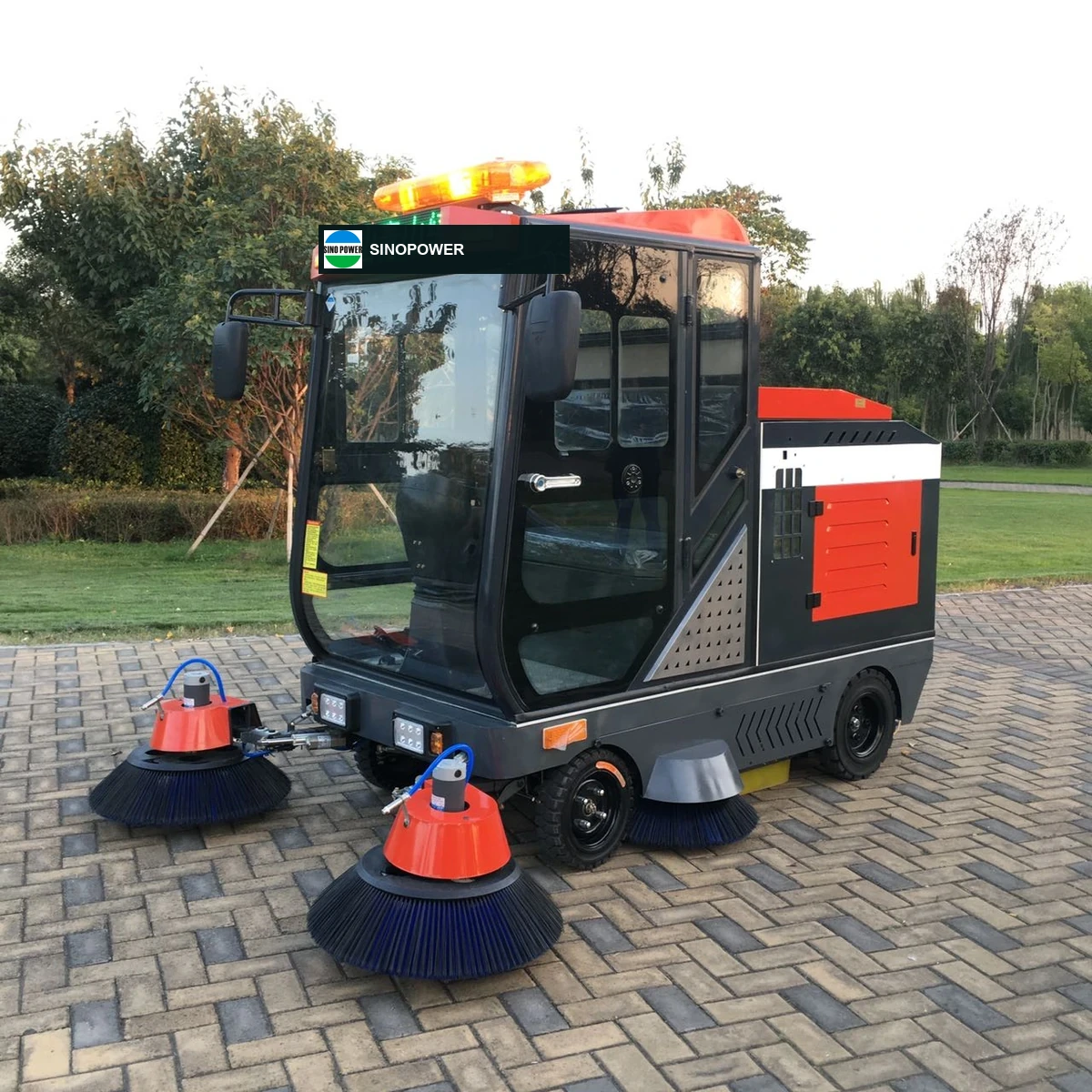

HF-SP-B4
Enclosed Four-Wheel B Sweeper
A protected four-wheel cabin sweeper with adjustable brush reach for factories, parks and public facilities.
Product images may show optional equipment.1,500-2,100 mm sweeping
10,000-15,000 m²/h
180 L hopper
Application fit
Purpose-built performance.
- Fully enclosed cab protects the operator during longer outdoor shifts
- Optional extending brushes increase working width to 2,100 mm
- Single- or dual-fan filtration and pressure-wash options support varied dust conditions
Configuration review
We confirm the route, surface, debris, duty cycle, climate, battery or charger and selected options before the final quotation.
Operating video
Request footage for HF-SP-B4
Ask our team for current working videos and configuration details for this platform.
Request model footageTechnical data
Key specifications.
Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.
Request a configuration sheet →| Sweeping width | 1,500-2,100 mm |
|---|---|
| Main brush | 700 mm |
| Efficiency | 10,000-15,000 m²/h |
| Battery | 48 V / 100-150 Ah |
| Hopper | 180 L |
| Water tank | Approx. 150 L |
| Drive / roller motor | 1,200 W / 1,000 W |
| Side brushes | 2 × 700 mm front + 2 × 500 mm rear |
| Filtration area | 5 m² single fan / 10 m² dual fan |
| Dimensions / weight | 3,100 × 2,100 × 2,000 mm / 1,000 kg |
Related platforms
Continue the comparison.
These models share a similar machine type or application role.
High-dump full suction
Electric cleaning equipment
HF-AKQX-3
High-Dump Full-Suction Sweeper
700 L high-dump hopper14,000–23,000 m²/h6–8 h runtime
Explore this model →Full suction
Electric cleaning equipment
HF-AKXS-1
Full-Suction Electric Sweeper
700 L hopper14,000–23,000 m²/h6–8 h runtime
Explore this model →Heavy-duty
Electric cleaning equipment
HF-AK210L
Industrial Cabin Sweeper
11,000–14,000 m²/h2,200 mm sweepingDouble filtration
Explore this model →Start a project
Discuss the HF-SP-B4 configuration.
Share your application, work-site conditions, destination market, expected quantity and configuration needs.
