Project review includes
- Application and work-site assessment
- Powertrain and configuration confirmation
- Selected standard and optional equipment
- Branding, labels and documentation
High-dump full suction
HF-AKQX-3

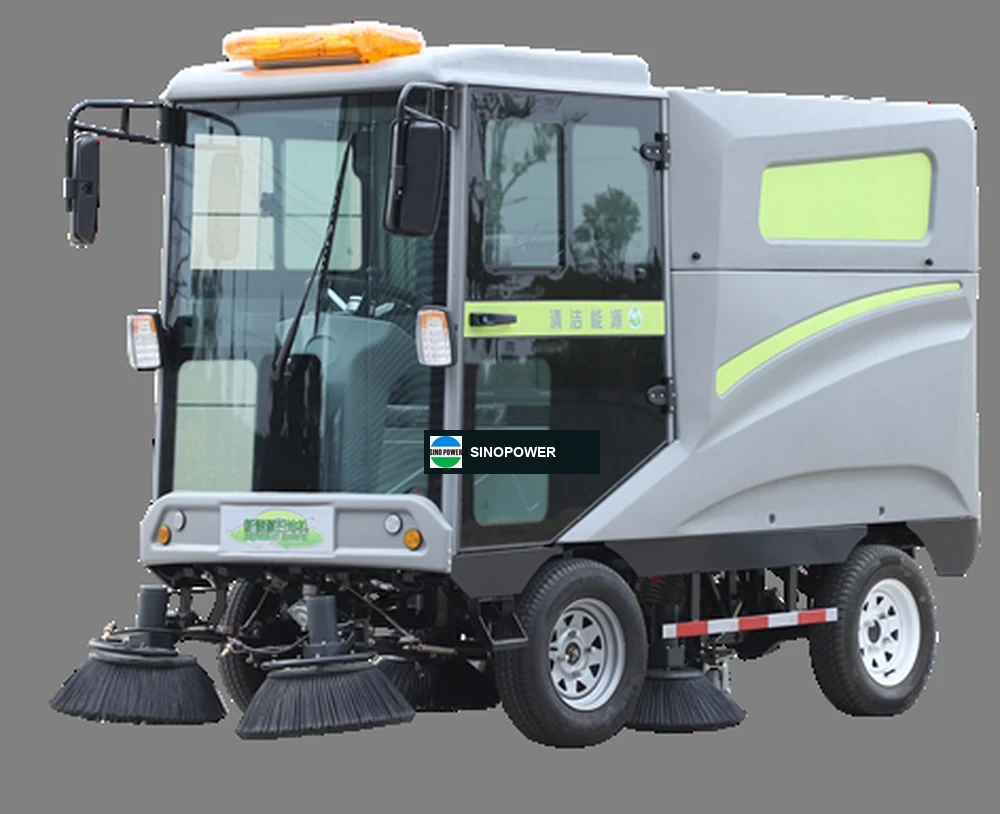

High-Dump Full-Suction Sweeper
A 700 L full-suction sweeper with high dumping, intelligent energy control and wide operator visibility for municipal routes.
Product images may show optional equipment.700 L high-dump hopper
14,000–23,000 m²/h
6–8 h runtime
Application fit
Purpose-built performance.
- Full-suction cleaning handles standing water and leaf-season debris
- Rear-view camera and wide cab visibility support safe operation
- Adjustable suction power reduces energy use and extends productive working time
Configuration review
We confirm the route, surface, debris, duty cycle, climate, battery or charger and selected options before the final quotation.
Operating video
Request footage for HF-AKQX-3
Ask our team for current working videos and configuration details for this platform.
Request model footageTechnical data
Key specifications.
Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.
Request a configuration sheet →| Sweeping width | 2,100 mm |
|---|---|
| Efficiency | 14,000–23,000 m²/h |
| Side-brush diameter | 550 mm × 2; 650 mm × 2 |
| Battery | 72 V lithium / 280 or 300 Ah, subject to cell configuration |
| Runtime | 6–8 h in normal municipal road conditions |
| Hopper | 700 L, high-dump |
| Water tank | 530 L |
| Drive / fan power | 3 kW (higher power optional for steep gradients) / 5.5 kW |
| Turning radius | 3.08 m |
| Gradeability | 30% |
| Working speed | 7–11 km/h |
| Travel speed | ≤20 km/h, adjustable to local regulations |
| High-pressure water gun | 100 bar, optional |
| Handheld suction hose | 5 m, optional |
| Air conditioning | 1,000 W heating/cooling, optional |
| Dimensions | 2,850 × 1,350 × 2,120 mm, excluding air conditioning |
