Seven-brush bin
HF-BIN240-7

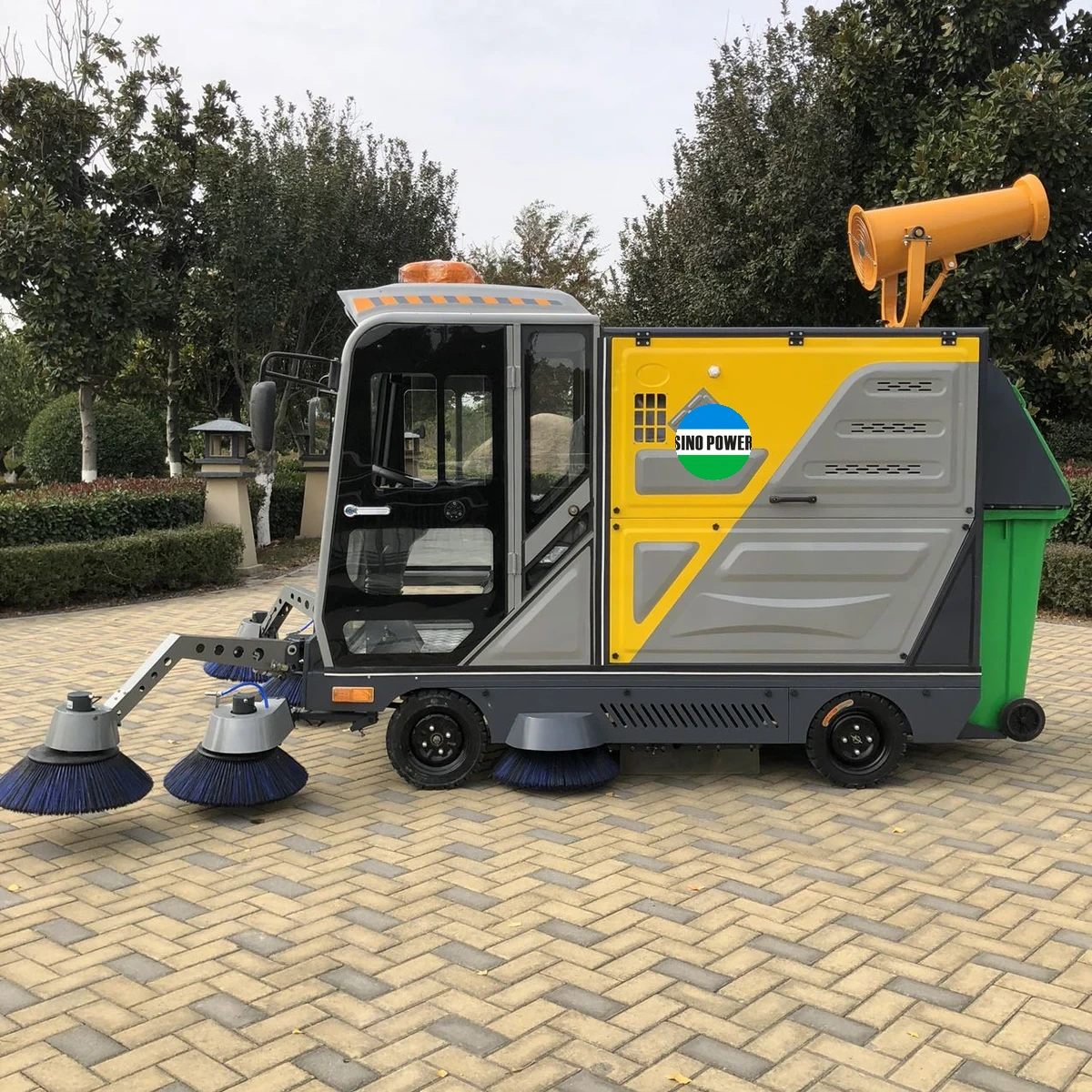

Seven-Brush 240 L Bin Sweeper
A seven-brush four-wheel machine combining 3,000 mm maximum coverage with a standard 240 L bin workflow.
Product images may show optional equipment.1,500-3,000 mm sweeping
240 L standard bin
15,000-20,000 m²/h
Application fit
Purpose-built performance.
- Seven-brush layout provides exceptional edge reach on broad routes
- Standard 240 L bin simplifies waste transfer and downstream handling
- Enclosed cab, twin filtration and optional wash packages support municipal fleets
Configuration review
We confirm the route, surface, debris, duty cycle, climate, battery or charger and selected options before the final quotation.
Operating video
Request footage for HF-BIN240-7
Ask our team for current working videos and configuration details for this platform.
Request model footageTechnical data
Key specifications.
Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.
Request a configuration sheet →| Sweeping width | 1,500-3,000 mm adjustable |
|---|---|
| Main brush | 690 mm |
| Efficiency | 15,000-20,000 m²/h |
| Battery | 48 V / 153-203 Ah |
| Waste capacity | 1 × 240 L standard bin |
| Water capacity | Approx. 200 L |
| Drive / roller motor | 2,200 W / 1,000 W |
| Side-brush motors | 6 × 100 W |
| Filtration area | 10 m² |
| Dimensions / weight | 4,700 × 3,000 × 2,600 mm / 1,600 kg |
