Home/Products/LH-380
Wheeled, 4WD
LH-380

Wheeled Skid Steer Loader

A four-wheel-drive loader for agile movement around construction and municipal work sites.

ConstructionMunicipal worksWarehousing
Quote this model →

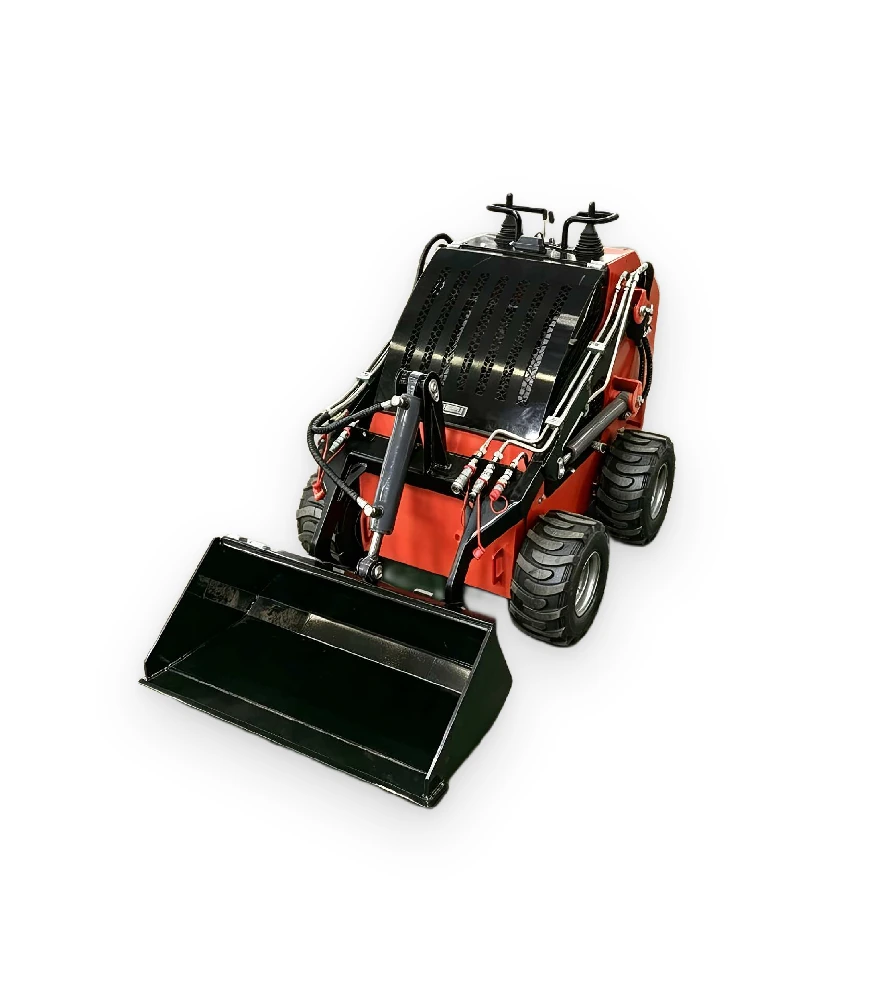

LH-380 Wheeled Skid Steer LoaderProduct images may show optional equipment.
350 kg rated load
23 hp engine
708 kg machine weight
Application fit

Purpose-built performance.

  • Four-wheel hydraulic drive supports mobile site work
  • Twin-cylinder engine and compact footprint for a broad range of jobs
  • Bucket supplied with optional tiller, snow broom, breaker and forks
Configuration review

We confirm the terrain, access width, duty cycle, working slope or load, powertrain, attachments and operating requirements before the final quotation.

Operating video

Request footage for LH-380

Ask our team for current working videos and configuration details for this platform.

Request model footage
Technical data

Key specifications.

Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.

Request a configuration sheet →
Dimensions2,140 × 1,130 × 1,280 mm
Net / gross weight708 kg / 750 kg
EngineRato 740D twin-cylinder, 23 hp / 739 cc; Briggs & Stratton option
Rated load350 kg; maximum 400 kg per catalogue
Bucket capacity0.15 m³
Maximum dump height1,700 mm
Dump reach700 mm
DriveFour-wheel drive; 18 × 8.5-8 tires
Travel speed0–9 km/h
ControlHydraulic joystick

Project review includes

  • Application and work-site assessment
  • Powertrain and configuration confirmation
  • Selected standard and optional equipment
  • Branding, labels and documentation

Support planning

  • Recommended wear items
  • Start-up spare-parts package
  • Operation and service documentation
  • Packaging and delivery coordination
