Compact tracked

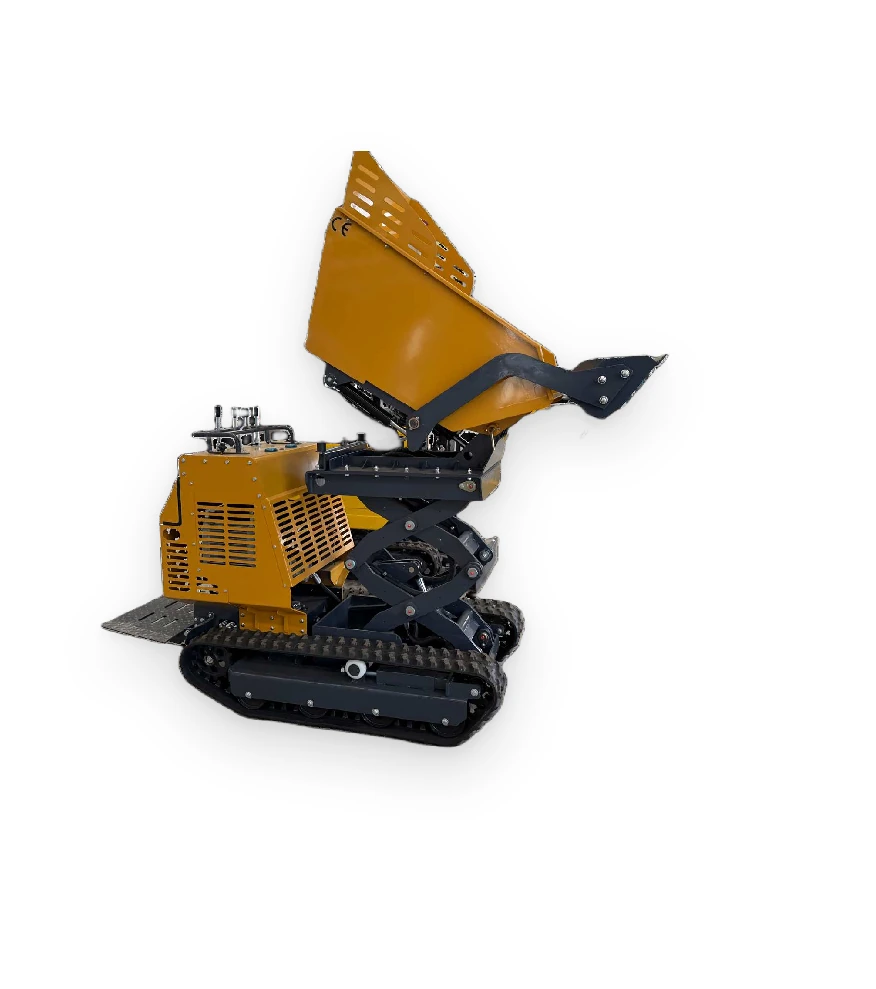

LFD-500
Compact Tracked Dumper
A compact hydraulic-tipping carrier for short-haul material movement on narrow or uneven sites.
Product images may show optional equipment.300 kg rated load
0.35 m³ bed
432 kg machine weight
Application fit
Purpose-built performance.
- Compact 860 mm width helps access orchards and narrow work areas
- Tracked drive supports travel across rougher ground
- Hydraulic tipping bed and joystick controls simplify material handling
Configuration review
We confirm the terrain, access width, duty cycle, working slope or load, powertrain, attachments and operating requirements before the final quotation.
Operating video
Request footage for LFD-500
Ask our team for current working videos and configuration details for this platform.
Request model footageTechnical data
Key specifications.
Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.
Request a configuration sheet →| Dimensions | 1,600 × 860 × 1,280 mm |
|---|---|
| Net / gross weight | 432 kg / 470 kg |
| Engine | Kop 173F diesel, 5 hp / 212 cc; alternatives by agreement |
| Rated load | 300 kg; maximum 500 kg per catalogue |
| Bed size | 1,100 × 690 × 720 mm |
| Bed capacity | 0.35 m³ |
| Tip angle | At least 50° per catalogue |
| Drive | Tracks, 180 mm wide |
| Travel speed | 0–5 km/h |
| Control | Hydraulic joystick |
