Range-extender
100A

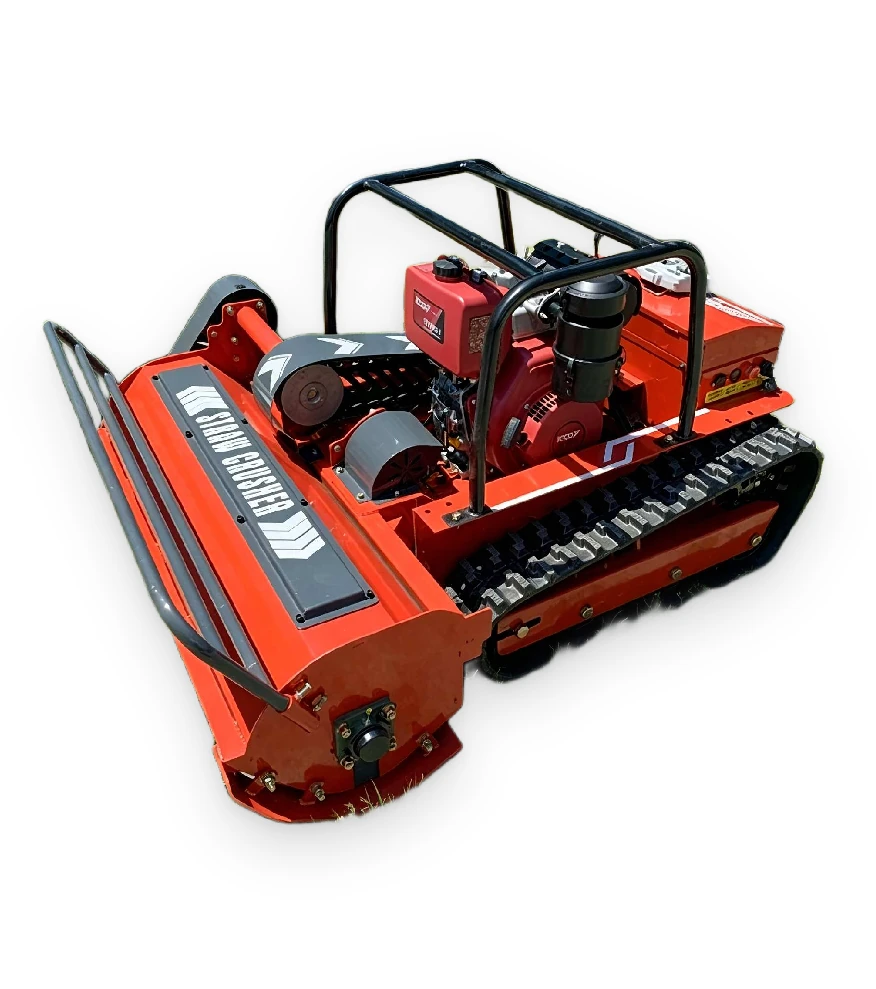

Heavy-Duty Diesel Range-Extender Mower
A wide-cut tracked mower with an onboard generator for large-area vegetation management.
Product images may show optional equipment.1,000 mm Y-blade
Up to 4,700 m²/h
Diesel range-extender
Application fit
Purpose-built performance.
- Yanmar 532 cc diesel engine with alternative engine options
- Onboard generator charges the drive battery during operation
- Wide Y-blade and rubber tracks suit large vegetation-maintenance areas
Configuration review
We confirm the terrain, access width, duty cycle, working slope or load, powertrain, attachments and operating requirements before the final quotation.
Operating video
Request footage for 100A
Ask our team for current working videos and configuration details for this platform.
Request model footageTechnical data
Key specifications.
Values are based on current catalogue information. Final specifications, options and safe operating limits should be confirmed for the supplied configuration and destination market.
Request a configuration sheet →| Dimensions | 1,620 × 1,180 × 950 mm |
|---|---|
| Net / gross weight | 365 kg / 450 kg |
| Engine | Yanmar 195F 532 cc diesel; alternatives by agreement |
| Fuel tank | 5.5 L |
| Remote range | Up to 200 m |
| Maximum working slope | 50° (catalogue figure; confirm operating conditions) |
| Cutting width | 1,000 mm Y-blade |
| Cutting height | 20–200 mm, manual; remote hydraulic lift optional |
| Mowing efficiency | Up to 4,700 m²/h |
| Generator | 28 V / 1,500 W standard; 56 V / 2,800 W option |
| Drive | Rubber tracks, 150 mm wide |
